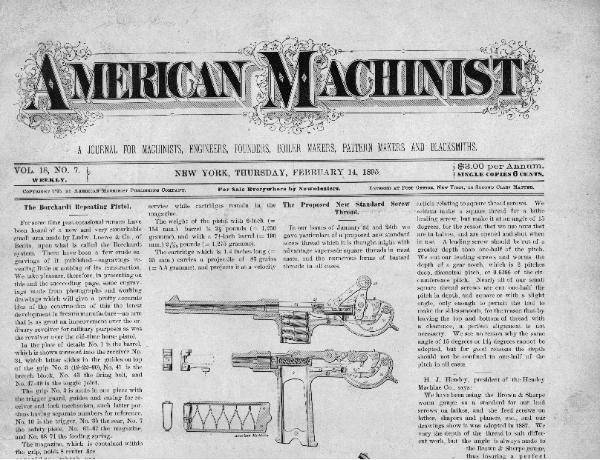

FEBUARY 14, 1895       AMERICAN MACHINIST

A JOURNAL FOR MACHINISTS, ENGINEERS, FOUNDERS, BOILER MAKERS, PATTERN
MAKERS AND BLACKSMITHS.
VOL. 18, NO. 7.   NEW YORK, THURSDAY, FEBRUARY 14 1896,    93.00 per Annum.

WEEKLY.        (        SINGLE COPIES 6 CENTS.
COPYRIGHT 1895, BY AMERICAN MACHINIST PUBi.I9111NO COMPANY.        For Sale
Everyww1iere by Newsdeaters.        FNT11KED AT P09T OFFICIO, New YORK, Al SECOND
Cass MATTER.

The Borchardt Repeating Pistol.
For some time past occasional rumors have been heard of a new and very remarkable
small arm made by Ludw. Loewe & Co., of Berlin, upon what is called the Borchardt
system. There have been a few crude engravings of it published—engravings revealing
little or nothing of its construction. We take pleasure, therefore, in presenting on this and
the succeeding page, some engravings made from photographs and working drawings
which will give a pretty accurate idea of the construction of this the latest
development in firearm manufacture—an arm that is as great an improvement over the
ordinary revolver for military purposes as was the revolver over the old-time horse pistol.
In the plate of details No. 1 is the barrel, which is shown screwed into the receiver No. 84,
which latter slides in the guides on top of the grip No. 8 (19-22-60), No. 41 is the bret ch
block, No. 43 the firing bolt, and No. 47-49 is the toggle joint.
The grip No. 8 is made in one piece with the trigger guard, guides and casing for receiver
and lock mechanism, such latter portions having separate numbers for reference. No. 10
is the trigger, No. -85 the sear, No. 7 the safety piece, No. 61-67 the magazine, and No. 68-
71 the feeding spring. The magazine, which is contained within the grip, holds 8 center fire
,art.ridvea which are service while cartridges remain in the magazine.
The weight of the pistol with 6-inch (= 154 mm.) barrel is 21 pounds (= 1,250 gramme), and
with a 71-inch barrel (= 190 mm.) 2 8,1, pounds (= 1,275 gramme).
The cartridge which is 1.4 inches long (= 85 mm.) carries a projectile of 85 grains (= 5.5
gramme), and projects it at a velocity.

The  Proposed New Standard Scree Thread.
In our issues of January 3d and 24th we gave particulars of a proposed new standard
screw thread which it is thought might with advantage supersede square threads in most
cases, and the numerous forms of bastard threads in all cases.article relating to square
thread screws. We seldom make a square thread for a lathe leading screw, but make it at
an angle of 15 degrees, for the reason that we use nuts that are in halves, and are opened
and shut when in use. A leading screw should be cut of a greater depth than one-half of
the pitch. We cut our leading screws and worms the depth of a gear tooth, which is 2
pitches deep, diametral pitch, or 0.6368 of the circumference pitch. Nearly all of our small
square thread screws are cut one-half the pitch in depth, and square or with a slight
angle, only enough to permit the tool to make the sides smooth, for the reason that by
leaving the top and bottom of thread with a clearance, a perfect alignment is not
necessary. We see no reason why the same angle of 15 degrees or 141 degrees cannot be
adopted, but for good reasons the depth
should not be confined to one-half of the
pitch in all cases.


H. J. Hendey, president of the Hendey Machine Co., says:
We have been using the Brown & Sharpe
worm gauge as a standard for our lead
screws on lathes, and the feed screws on
lathes, shapers and planers, etc., and our
drawings show it was adopted in 1887. We
vary the depth of the thread to suit differ-
ent work, but the angle is always made to


the trigL,I r u:u i, gkil i s nnii casing; tor ru ceiver anal l(wk inw hnniMin, such Latter por-
tions having separate numbers for reference. No. 10 is the trigger, No. -85 the sear, No. 7
the safety piece, No. 61-67 the magazine, and No. 68-71 the feeding spring.
The magazine, which is contained within the grip, holds 8 center fire
cartridges which are brought to the front of the
breech block when the latter is moved to the rear In opening the breech, and closing the
breech places the cartridge in its proper position in the firing •chamber.
The recoil at firing drives the barrel and breech mechanism to the rear, the three friction
rolls of the rear link 51-52-58 strike
.against the curved butt and are forced downward, the middle joint of toggle is raised, and
the breech block recedes taking with it the ,empty shell by means of the extractor, No. 48,
until the ejector, No. 14, strikes ~Y        `a. the shell from below, and throws it out, and the
surplus momentum of the recoiling ports is taken up by the recoil spring, against which
the friction rolls impinge.
As soon as the recoil, which is so eased as to be
:scarcely noticeable to the
hand, is spent, the springs
draw the toggle link, No.
49, forward, and downward, the breech block pushes the uppqr'cartridge into the barrel,
and the firing bolt is arrested and held •cocked by the sear.
The action of the piece is so rapid that the ,eye cannot follow the movements, and the
eight shots can be fired before the first shell ejected has struck the ground.
The safety piece prevents accidents when the arm is not in action, otherwise the pistol is
always cocked and ready forof about 1,300 feet per second (= 400 meters).

The rifling is one turn in 10 inches (= 250 mm.), and the caliber is 0.3 inches (_
7.65 mm.).
A buttstock and cover is fitted for military purposes when required, as is also a shoulder
piece when the arm is to be used for sporting.
The plate of details on page 122 includes ill parts of the pistol.
Thinking it would be a'mtittcr of intcn;si. to tool builders, c!9pecially as well as to others,
we have asked several well-known firms and mechanics to give us their views upon the
matter. Others have volunteered opinions, and we print them below :
Mr. F. A. Pratt, president of the Pratt & Whitney Co., writing for that company,
says:
Replying to your favor of 8d inst., we notice in your issue of same date anworm gauge as
astandard for our lead screws on lathes, and the feed screws on lathes, shapers and
planers, etc., and our drawings show it was adopted in 1887. We vary the depth of the
thread to, suit different work, but the angle is always made to
the Brown & Sharpe gauge,
thus insuring a perfect
standard for all o f o u r
work.
We long since found It an advantage over the square threads in making a fit in the nut, as
it is almost impossible to do so
on a square thread, and
.r the square thread nut seems to lose its size quicker than the angle thread. We
would not under any con-
sideration go back to the
square thread on our work.
We hope this will come into general use on machine tools.
There is also another matter in this connection which we have often thought of bringing
before builders of machine tools. Why should we not have a
standard for the thread on the nose of the spindle of a
lathe, and also for the taper in the end of the spindle, and, if possible, the size of hole
through the spindle ? It is often a source of annoyance to have as
many different threads on
the lathe spindles as there
are lathes in t1w shop, and to be compelled to have separate chucks and fixtures for each
lathe. It is no advantage to the builders of
lathes for each to have a different standard
for the thread of spindle and the taper in end of spindle, and it would certainly be an
advantage to their customers to be able to buy a lathe and know that the fixtures which.
they already have in use would fit. We would be pleased to have this uuitler ventilated a,
little in your paper, and it i.v

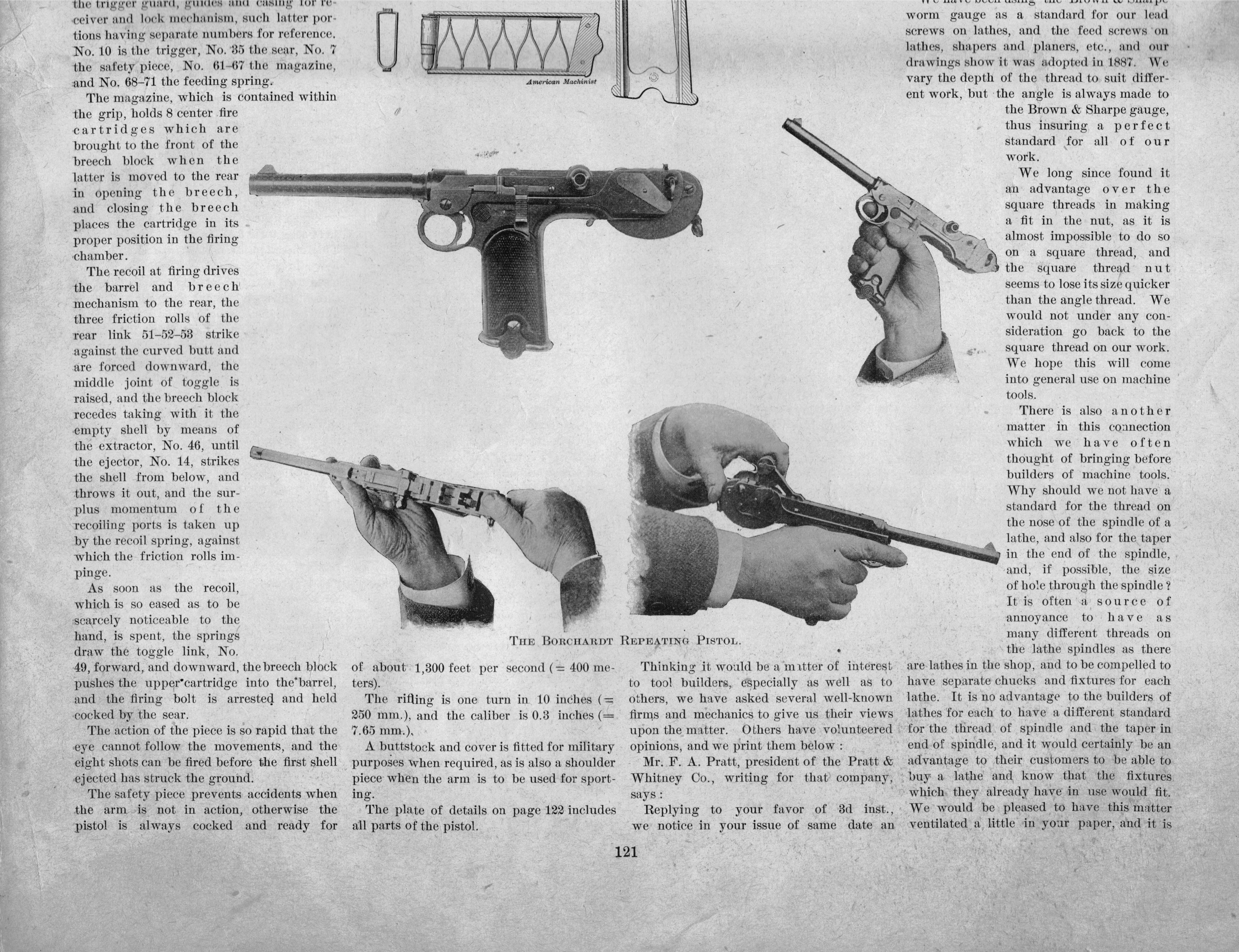

BORCHIARDT REPEATING PISTOL.
W4
121

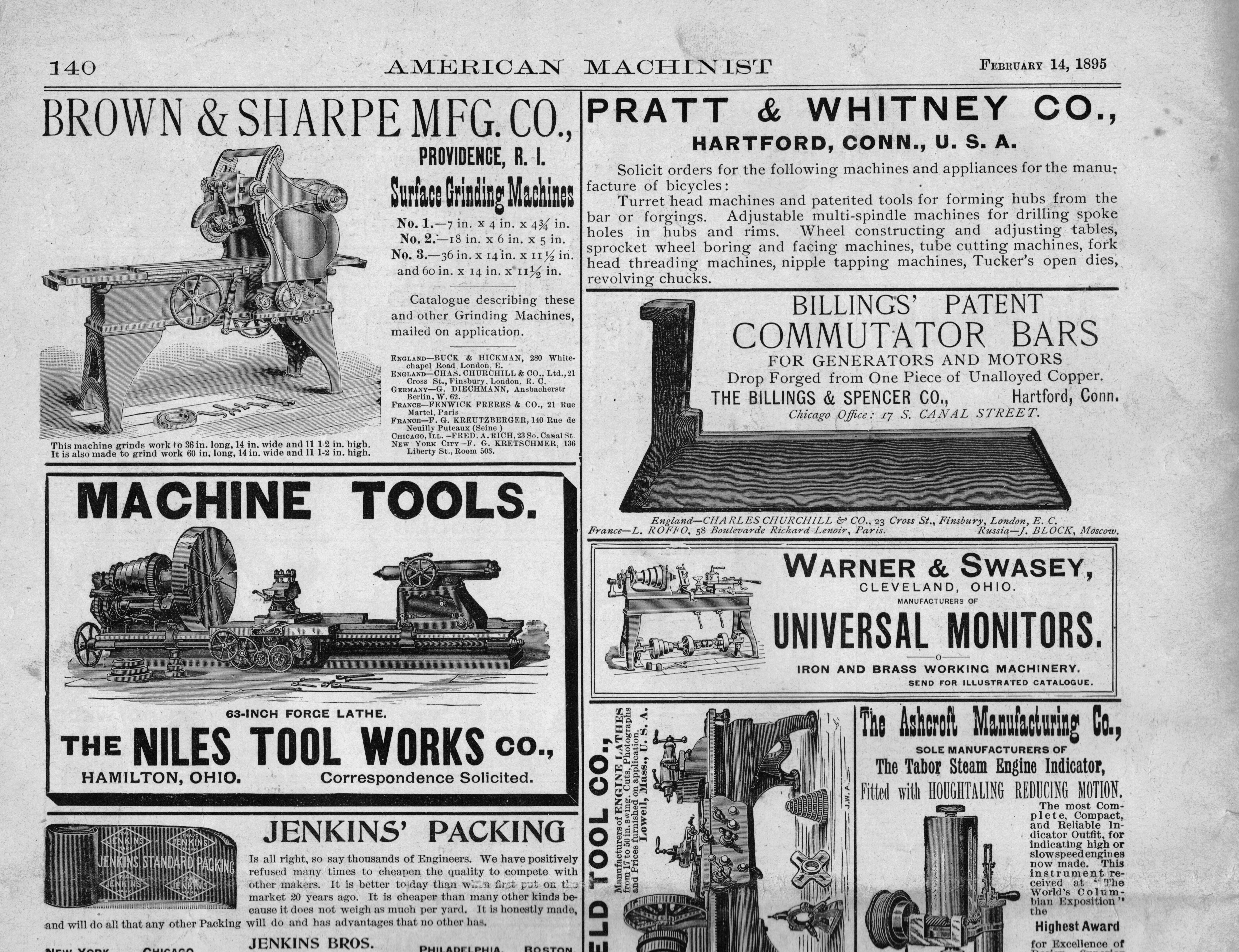

140        AMERICAN- MACHINIST
